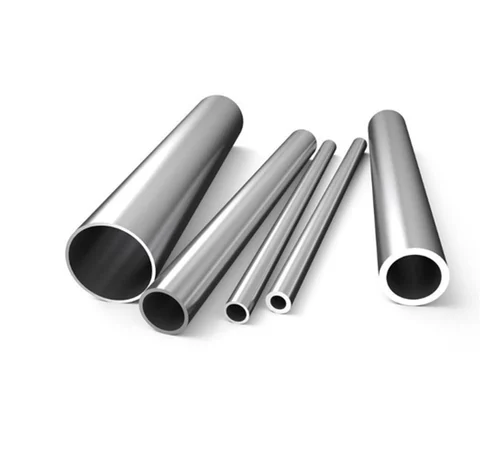

Titanium Tubes are high-performance metal tubes known for their exceptional strength-to-weight ratio, outstanding corrosion resistance, and excellent performance in extreme operating environments. Titanium exhibits superior resistance to seawater, chlorides, and aggressive chemical media.
Titanium Tubes are manufactured in seamless and welded forms and are widely used in applications requiring lightweight construction, high mechanical strength, and long service life under corrosive and high-temperature conditions.
Titanium Tubes are available in commercially pure and alloyed grades to meet diverse service requirements. The most commonly supplied grades include Titanium Grade 2 and Titanium Grade 5 (Ti-6Al-4V), offering an excellent balance of corrosion resistance, strength, and durability.
Titanium Tube Manufacturer in India | Titanium Gr 2 & Gr 5 Tube Supplier
Applications of Titanium Tubes
| ● Heat Exchangers & Condensers |
| ● Chemical Processing & Petrochemical Plants |
| ● Marine, Seawater & Desalination Systems |
| ● Aerospace & High-Performance Engineering |
| ● Power Generation & Offshore Platforms |
| ● Medical & Pharmaceutical Equipment |
Specification Table of Titanium Tube
| Standard | ASTM B338, ASTM B337, ASTM B861, ASTM B862 |
|---|---|
| Outside Diameter | 6 mm to 114.3 mm (Custom sizes available) |
| Wall Thickness | 0.5 mm to 10 mm |
| Type | Seamless / Welded |
| Surface Finish | Annealed, Pickled, Polished |
| End | Plain End / Cut Length |
Titanium Tube Grades (Sub-Products)
| ● Titanium Grade 2 – Excellent corrosion resistance with moderate strength, widely used in heat exchangers, condensers, and marine applications |
| ● Titanium Grade 5 (Ti-6Al-4V) – High strength alloy with excellent fatigue resistance, commonly used in aerospace and high-performance engineering |
Mechanical Properties of Titanium Tubes (Typical)
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation % |
|---|---|---|---|
| Titanium Grade 2 | 275 | 345 | 20 |
| Titanium Grade 5 | 880 | 950 | 14 |
