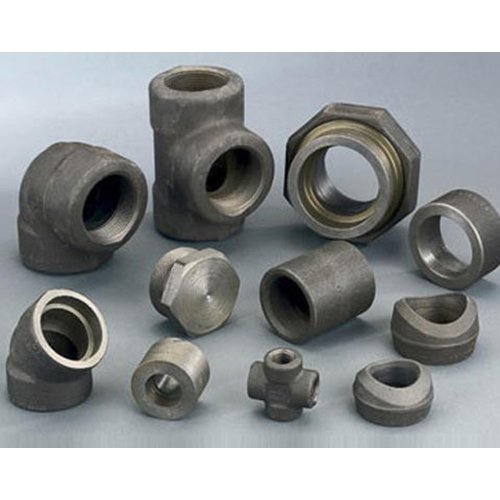

Alloy Steel Socket Weld Fittings are precision-forged components designed for high-pressure, high-temperature, and critical service piping systems. These fittings are alloyed with chromium and molybdenum to provide excellent mechanical strength, creep resistance, oxidation resistance, and long-term reliability.
Alloy Steel Socket Weld Fittings are widely used in power plants, oil & gas refineries, petrochemical units, chemical processing plants, and industrial piping where leak-proof, compact, and vibration-resistant joints are required.
Alloy Steel Socket Weld Fittings are manufactured in accordance with ASTM A182 and ASME SA182 standards. Commonly supplied grades include F1, F5, F9, F11, F12, F22, and F91, each engineered for specific temperature, pressure, and corrosion resistance requirements.
Alloy Steel Socket Weld Fittings Manufacturer in India | ASTM A182 F1, F5, F9, F11, F12, F22 & F91 Supplier
Applications of Alloy Steel Socket Weld Fittings
| ● Power Generation & Thermal Power Plants |
| ● Oil & Gas Refineries |
| ● Petrochemical & Chemical Processing Plants |
| ● Boilers, Superheaters & Heat Exchangers |
| ● High-Pressure & High-Temperature Piping Systems |
| ● Fertilizer & Process Industries |
Specification Table of Alloy Steel Socket Weld Fittings
| Standard | ASTM A182, ASME SA182, ASME B16.11 |
|---|---|
| Grades | F1, F5, F9, F11, F12, F22, F91 |
| Size | 1/8″ NB to 4″ NB |
| Pressure Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socket Weld Forged Fittings |
| Fitting Types | Elbow, Tee, Coupling, Union, Cross, Plug, Cap |
Alloy Steel Socket Weld Fitting Grades (Sub-Products)
| ● Alloy Steel F1 Socket Weld Fittings – Low alloy Cr-Mo grade for moderate temperature service |
| ● Alloy Steel F5 Socket Weld Fittings – Chromium-molybdenum alloy for high-temperature resistance |
| ● Alloy Steel F9 Socket Weld Fittings – Enhanced strength and oxidation resistance |
| ● Alloy Steel F11 Socket Weld Fittings – Widely used in boilers and heat exchangers |
| ● Alloy Steel F12 Socket Weld Fittings – Improved creep and corrosion resistance |
| ● Alloy Steel F22 Socket Weld Fittings – Excellent heat and pressure resistance |
| ● Alloy Steel F91 Socket Weld Fittings – High-strength creep-resistant alloy for power plants |
Mechanical Properties (Typical)
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation % |
|---|---|---|---|
| ASTM A182 F11 | 205 | 415 | 20 |
| ASTM A182 F22 | 205 | 415 | 20 |
| ASTM A182 F91 | 415 | 585 | 20 |
