Titanium Outlet Fittings are precision-engineered forged fittings designed to create branch connections from main pipelines in high-pressure and highly corrosive service conditions. Titanium offers an exceptional strength-to-weight ratio along with outstanding resistance to seawater, chlorides, and aggressive chemical environments.
Titanium Outlet Fittings are widely used where lightweight construction, long service life, and superior corrosion resistance are critical. These fittings ensure excellent mechanical performance, leak-free connections, and reliability in demanding industrial applications.
Titanium Outlet Fittings are available in commercially pure and alloyed titanium grades to meet different operating requirements. Commonly supplied grades include Titanium Grade 2 and Titanium Grade 5 (Ti-6Al-4V), offering an optimal combination of corrosion resistance, mechanical strength, and durability.
Titanium Outlet Fittings Manufacturer in India | Titanium Gr 2 & Gr 5 Outlet Supplier
Applications of Titanium Outlet Fittings
| ● Chemical Processing & Petrochemical Plants |
| ● Marine, Seawater & Offshore Applications |
| ● Heat Exchangers & Condenser Piping |
| ● Power Generation & Nuclear Facilities |
| ● Aerospace & High-Performance Engineering Systems |
| ● Desalination & Water Treatment Plants |
Specification Table of Titanium Outlet Fittings
| Standard | ASTM B363, ASME B16.11, MSS SP-97 |
|---|---|
| Type | Weldolet, Threadolet, Sockolet, Nippolet, Elbolet |
| Size | 1/8″ NB to 24″ NB (Custom sizes available) |
| Pressure Class | 3000#, 6000#, 9000# |
| Manufacturing | Forged |
| Surface Finish | Pickled, Machined, Polished |
Titanium Outlet Fitting Grades (Sub-Products)
| ● Titanium Grade 2 – Excellent corrosion resistance with good formability, ideal for chemical, marine, and heat exchanger applications |

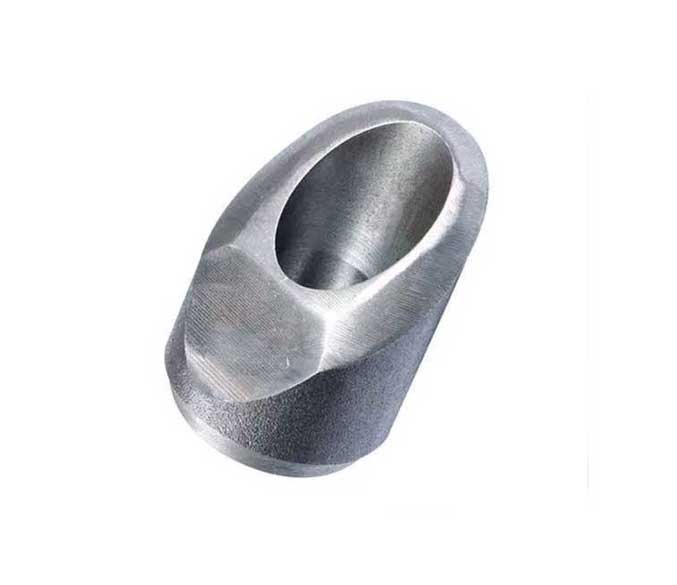

| ● Titanium Grade 5 (Ti-6Al-4V) – High-strength titanium alloy with superior fatigue resistance, suitable for aerospace and high-pressure systems |
Mechanical Properties of Titanium Outlet Fittings (Typical)
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation % |
|---|---|---|---|
| Titanium Grade 2 | 275 | 345 | 20 |
| Titanium Grade 5 | 880 | 950 | 14 |
