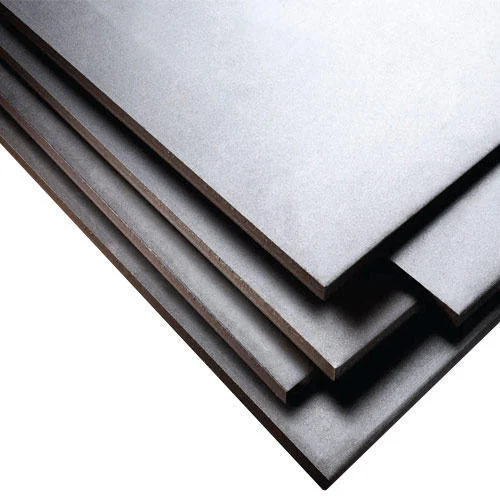

API 5L Plate / Sheet / Coil
API 5L Plate, Sheet, and Coil are high-strength carbon steel products manufactured These products are designed for use in the fabrication of oil, gas, water, and petrochemical pipelines, pressure vessels, and structural components requiring excellent strength and toughness.API 5L plates and sheets are widely used in the manufacturing of line pipes, pipe fittings, flanges, outlet fittings, and welded structures for onshore and offshore applications. API 5L coils are commonly used for pipe forming, large-diameter welded pipes, and custom fabrication where uniform mechanical properties and dimensional accuracy are critical.
API 5L plates, sheets, and coils are supplied in PSL1 and PSL2 specifications to meet different service conditions. PSL2 material offers enhanced chemical composition control, improved impact resistance, and stricter mechanical property requirements for demanding pipeline environments.
Commonly supplied grades include API 5L , API 5L X42, API 5L X52, API 5L X56, API 5L X60, API 5L X65, API 5L X70, and API 5L X80. Lower grades are suitable for moderate pressure applications, while higher grades are preferred for long-distance, high-pressure, and high-capacity pipeline projects.
API 5L X65, X70, and X80 plates and coils are extensively used in critical pipeline systems due to their superior yield strength, tensile strength, and resistance to deformation under extreme operating conditions.
Revinox is a reliable supplier of API 5L plates, sheets, and coils in both PSL1 and PSL2 conditions. These materials are available in as-rolled, normalized, TMCP, and customized thickness ranges to meet project-specific fabrication and performance requirements for global oil, gas, and energy infrastructure projects.
API 5L Plate, API 5L Sheet, API 5L Coil, API 5L Carbon Steel Plate Manufacturer in India
Application of API 5L Plate / Sheet / Coil
| ● Line Pipe Manufacturing (LSAW, SAW, ERW) |
| ● Oil & Gas Transmission Pipelines |
| ● Petrochemical & Refinery Equipment |
| ● Offshore & Onshore Pipeline Projects |
| ● Pressure Vessels & Structural Fabrication |
Specification Table of API 5L Plate / Sheet / Coil
| Specification | Details | |
|---|---|---|
|
Standard
|
API 5L, ISO 3183 (PSL 1 & PSL 2) as per :contentReference[oaicite:0]{index=0} | |
|
Thickness
|
3 mm to 150 mm (custom thickness available on request) | |
|
Width
|
1000 mm to 3500 mm (coils & cut plates available) | |
|
Form
|
Plate, Sheet, Coil | |
|
Grades
|
Grade B, X42, X52, X56, X60, X65, X70, X80 | |
Delivery Condition
| PSL | Delivery Condition | Applicable Grades |
|---|---|---|
| PSL 1 | As-rolled, normalized | - |
| Thermomechanical rolled (TMCP) | X42, X52, X56, X60, X65, X70, X80 | |
| PSL 2 | Normalized / Normalizing rolled | X42N, X52N, X56N, X60N, X65N, X70N, X80N |
| Quenched & Tempered (Q&T) | X52Q, X56Q, X60Q, X65Q, X70Q, X80Q | |
| Thermomechanical rolled / formed | X42M, X52M, X56M, X60M, X65M, X70M, X80M |
API 5L Plate / Sheet / Coil Grades (Sub-Products)
| ● API 5L X42 – Pipe forming & general pipeline fabrication |
| ● API 5L X52 – Oil & gas pipeline plate manufacturing |
| ● API 5L X56 – Medium to high-pressure pipeline plates |
| ● API 5L X60 – High-strength line pipe & coil applications |
| ● API 5L X65 – Long-distance & high-pressure pipeline projects |
| ● API 5L X70 – Large diameter & offshore pipeline fabrication |
| ● API 5L X80 – Critical, high-capacity & advanced pipeline systems |
Process of Manufacturing – API 5L Plate / Sheet / Coil
| Product Form | PSL 1 | PSL 2 | |||
|---|---|---|---|---|---|
| Plate | ✔ | ✔ | ✔ | ✔ | ✔ |
| Sheet | ✔ | ✔ | ✔ | ✔ | |
| Coil | ✔ | ✔ | ✔ | ✔ | |
|
Plate – Hot Rolled / Quenched & Tempered Flat Products Sheet – Thin Flat Products for Fabrication & Forming Coil – Hot Rolled or TMCP Coil for Pipe Manufacturing |
|||||
Chemical Composition Table – API 5L Plate / Sheet / Coil (PSL 1)
| Steel Grade | C max | Mn max | P max | S max | Nb + V + Ti max |
|---|---|---|---|---|---|
| 0.28 | 1.20 | 0.030 | 0.030 | 0.15 | |
| API 5L X42 / X52 | 0.28 | 1.40 | 0.030 | 0.030 | 0.15 |
| API 5L X56 – X70 | 0.28 | 1.40 | 0.030 | 0.030 | 0.15 |
Chemical Composition Table – API 5L Plate / Sheet / Coil (PSL 2)
| Steel Grade | C max | Mn max | P max | S max | CE (Max) |
|---|---|---|---|---|---|
| X42 / X52 | 0.24 | 1.40 | 0.025 | 0.015 | 0.43 |
| X56 / X60 | 0.22 | 1.50 | 0.025 | 0.015 | 0.43 |
| X65 / X70 / X80 | 0.20 | 1.60 | 0.025 | 0.015 | 0.45 |
Mechanical Properties – API 5L Plate / Sheet / Coil
| Steel Grade | Yield Strength (PSI Min) | Tensile Strength (PSI Min) | Elongation Min % |
|---|---|---|---|
| 35,000 | 60,000 | 22 | |
| API 5L X42 | 42,000 | 60,000 | 21 |
| API 5L X52 | 52,000 | 66,000 | 21 |
| API 5L X56 | 56,600 | 71,100 | 20 |
| API 5L X60 | 60,200 | 75,400 | 20 |
| API 5L X65 | 65,300 | 77,000 | 19 |
| API 5L X70 | 70,300 | 82,000 | 18 |
| API 5L X80 | 80,000 | 90,000 | 18 |
API 5L Plate / Sheet / Coil – Tensile and Yield Properties (PSL 1 & PSL 2)
API 5L plates, sheets, and coils are widely used for manufacturing LSAW, HSAW, ERW pipes, pressure vessels, structural components, and offshore pipeline systems. These flat products are supplied in PSL 1 and PSL 2 conditions, offering controlled tensile strength, yield strength, and excellent toughness.
API 5L Plate / Sheet / Coil Grades Offered:
- API 5L X42 Plate / Coil
- API 5L X52 Plate / Coil
- API 5L X56 Plate
- API 5L X60 Plate
- API 5L X65 Plate
- API 5L X70 Plate
- API 5L X80 Plate
| Steel Grade | Tensile Properties – API 5L Plate / Coil (PSL 2) | ||||
|---|---|---|---|---|---|
| Yield Strength (PSI) | Tensile Strength (PSI) | Yield / Tensile Ratio (Max) | |||
| Min | Max | Min | Max | ||
| X56N / X56Q / X56M | 56,600 | 79,000 | 71,100 | 110,200 | 0.93 |
API 5L Plate / Sheet / Coil – Dimensional & Thickness Tolerances
API 5L plates, sheets, and coils are produced under strict dimensional and thickness tolerances to ensure uniformity, formability, and mechanical performance. These tolerances are critical for pipe forming, pressure equipment fabrication, and offshore structural applications.
Products Covered:
- API 5L Plate for LSAW & HSAW Pipes
- API 5L Hot Rolled Sheet
- API 5L Coil (TMCP / Normalized / Q&T)
