DN	Nominal Pipe Size	Center to End Elbow, Tee, Cross A			Center to End 45 Deg. Elbow C			Outside Diameter of Bend H			Minimum Wall Thickness G			Length of Thread Min. (1)
DN	Nominal Pipe Size	2000	3000	3000	2000	3000	3000	2000	3000	3000	2000	3000	3000	B	L2
6	1/8*	21	21	25	17	17	19	22	22	25	3.18	3.18	6.35	6.4	6.7
8	1/4*	21	25	28	17	19	22	22	25	33	3.18	3.30	6.60	8.1	10.2
10	3/8*	25	28	33	19	22	25	25	33	38	3.18	3.51	6.98	9.1	10.4
15	1/2*	28	33	38	22	25	28	33	38	46	3.18	4.09	8.15	10.9	13.6
20	3/4*	33	38	44	25	28	33	38	46	56	3.18	4.32	8.53	12.7	13.9
25	1*	38	44	51	28	33	35	46	56	62	3.68	4.98	9.93	14.7	17.3
32	1-1/4*	44	51	60	33	35	43	56	62	75	3.89	5.28	10.59	17.0	18.0
40	1-1/2*	51	60	64	35	43	44	62	75	84	4.01	5.56	11.07	17.8	18.4
50	2*	60	64	83	43	44	52	75	84	102	4.27	7.14	12.09	19.0	19.2
65	2-1/2*	76	83	95	52	52	64	92	102	121	5.61	7.65	15.29	23.6	28.9
80	3*	86	95	106	64	64	79	109	121	146	5.99	8.84	16.64	25.9	30.5

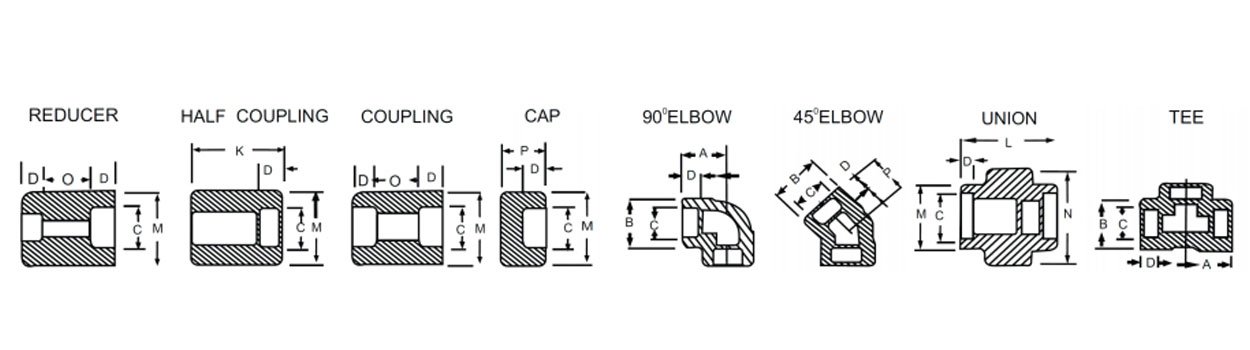

FORGED FITTINGS DIMENSION
